Band saw MEP SHARK 332 CCS
Gravity Band Saw MEP SHARK 332 CCS with maximum cutting capacity of 300mm, 330x260mm (profile). 2 cutting speeds 40 and 80 m/min. Adjustable angle cuts from 0° to +45° to the right and 0° to + 60° to the left. Power consumption 1.5 / 1.8 KW.
Product code: SHARK 332 CCS
This product can be obtained on the basis of a non-binding inquiry. After sending your inquiry, we will prepare an individual price offer with the earliest possible delivery date.
Band saw MEP SHARK 332 CCS
out of stock
Description
SHARK 332 CCS, manual band sawing machine to cut from 60° left to 45° right. This model is available in the manual version or with the Cut Control System (CCS).
– Functioning of the CCS cycle: after positioning the bar and closing the vice, the cutting phase is started, using the weight of the saw head controlled by a hydraulic braking circuit to adjust the feeding speed; after the cut, the saw head is manually lifted till the position needed for the bar to be fed.
In the Shark 332 CCS MA model (pneumatic vice) vice opens/closes by means of a footpedal.
A FEW FEATURES:
- Electric system (wiring totally identifiable, stand-by, main lockable disconnect switch, pole change switch, emergency stop, motor magneto-thermal overload, minimum tension coil, protection against missing phase, low tension safety device 24 V).- Band tensioning with visualization on LCD by electronic transducer.
- Manual clamping system by means of vice screw with fast-positioning system.
- Coolant tank inside the steel base and drawer to collect chips which can be replaced with a motorized chip evacuator (see optionals).
- Electric pump for band lubrication and cooling.
- Wire chip brush for band cleaning.
- Adjustable rod to measure stop to make cuts of the same length with millimetred steel rod.
- Machine arranged for handling with movement equipment.
- Bi-metal band for solids and sections.
- Service keys and instructions manual for maintenance and spare parts list.
FEATURED SPECIFICATIONS:

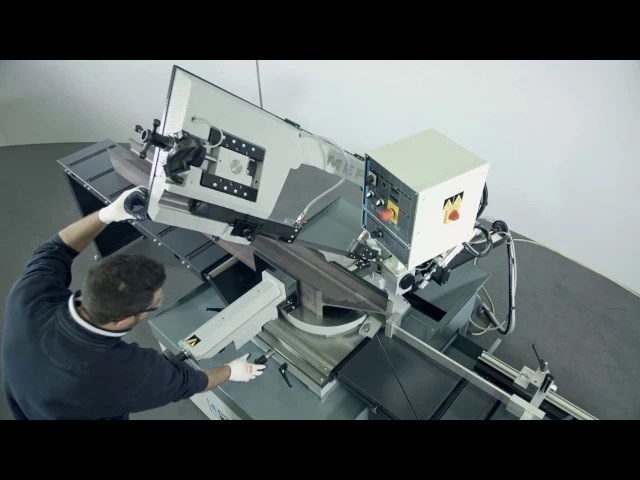

Video
