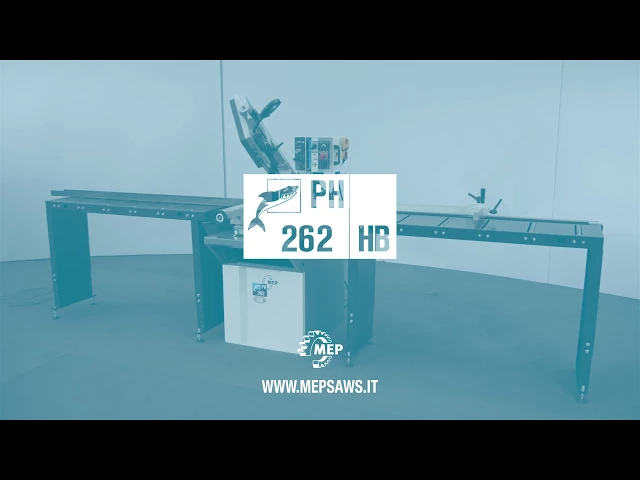

Band saw MEP PH262/HB
Gravity band saw MEP PH262/HB with maximum cutting capacity Ø 225mm, 240x160mm (profile) 2 cutting speeds 46 and 92 m/min. Adjustable angle cuts from 0° to +60°, 0° to -45°. Moving vice - for angular cuts. Power consumption 0.81 KW.
Product code: PH262/HB
This product can be obtained on the basis of a non-binding inquiry. After sending your inquiry, we will prepare an individual price offer with the earliest possible delivery date.
Description
The PH 262, manual band sawing machines for cuts from -45° to +60° is also supplied in a version with Hydraulic Brake device (HB) to make single cuts
without operator but keeping the manual cutting cycle available ( the HB device is available only in the three-phase version).
A FEW FEATURES
- Sturdy structures in cast iron in order to tension the band at 900 kg.
- Sliding vice with sideways movement and fast positioning system.
- Electrical board with entirely identifiable wiring, stand-by, main switch with lock, short circuit protection, motor overload cutout, min. voltage coil, low voltage system 24 V.
- Control handle IP55.
- Driving pulley locked with clamp ring to ensure a strong fastening, still allowing axial adjustment.
- Blade-guide heads with 6 CARBIDE pads instead of bearings to ensure a better stability.
- Mechanical stop at -45° and +60° with lever for locking at any angles in between.
- Head pivoting with preloaded tapered bearings.
- Electric pump for the band lubrication and cooling and Brush band-cleaning device.
- Bimetallic band for profiles and solid pieces.
- Instructions manual and spare parts list
