Welder HELVI COMPACT EVO 416HF
Professional welding inverter Helvi COMPACT EVO 416HF designed to work with unstable voltage supplies caused by the use of power units and long connection lines.
Product code: 99815045
For purchasing this product you will receive 208 points towards the loyalty program. Valid only for bonus club members.
0% VAT for Businesses with an EU VAT Number. More information...
Welder HELVI COMPACT EVO 416HF
in stock 1 pcs
Description
Welding inverters designed to work with unstable supply voltages caused by the use of power generators and long connection lines, designed to meet the requirements of even the most demanding user with a wide current range and a high duty cycle. Excellent welding features guaranteed with all types of commercial electrodes due to the possibility to setup Arc Force and Hot Start values. Equipped with special features controlling excess input voltage, overheating and electrode sticking, functions which protect against instable generators even in the harshest working conditions. The TIG/MMA switch also enables use for TIG Lift Arc or HF welding accordingly to the chosen model. Equipped with digital display to show welding current, welding voltage and other parameters. The generator is fitted with a VRD, which allows to work even in hazard environments. The VRD function can be switched on or off as required. All models may be used with remote control. TIG HF models allow to set all welding parameters.
APPLICATIONS
- light industry
- farming
- service/maintenance
- tube and piping
- heavy industry
- structural construction
- offshore - shypyards
- automotive
- vehicle customizing

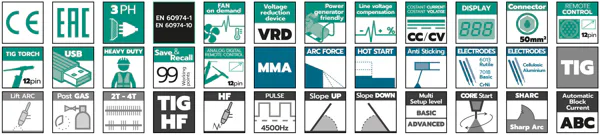

FEATURES: (water cooling ready)
* Note. hover the mouse over the image to display a description of the welding machine function.
TECHNICAL PARAMETERS:
| Input voltage (3ph) | 400V - 50/60Hz | |
| TIG | MMA | |
|---|---|---|
| Power 60% | 13 KVA | 14 KVA |
| No load output voltage Uo | 10 V | 75 V |
| Amp. min-max | 5 ÷ 400 A | 5 ÷ 350 A |
| Amp. 60974-1 | 50% 400 A 100% 300 A |
50% 350 A 100% 270 A |
| Ø E | - | 1,6 ÷ 6 mm |
| Electrode Type | 6010 - 6011 - 6013 - 7018 Cast Iron - Aluminum - CrNi |
|
| Insulation | H | |
| Protec. Degree | IP22S | |
| Machine (LxWxH) | 530x255x460 mm | |
| Package (LxWxH) | 680x310x520 mm | |
| Weight box/net | 33,2 / 31,4 Kg | |
| Code | 99815045 | |
Helvi
