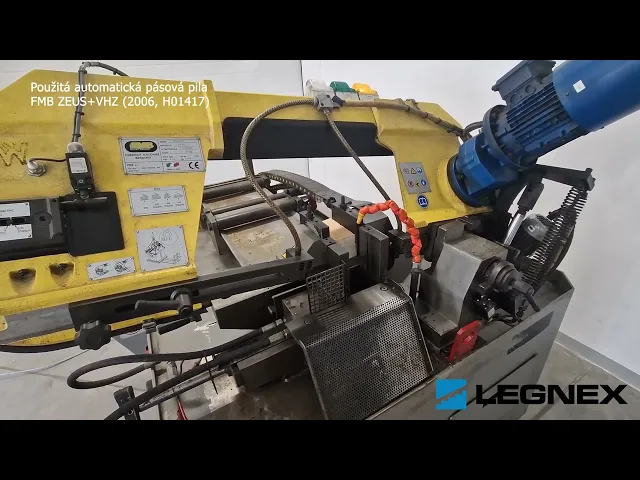

Band saw FMB ZEUS+VHZ (used H01417, 2006)

Description

Very well preserved used automatic band saw ZEUS+VHZ with maximum cutting capacity Ø 240mm (round), 240x240mm (profile). Continuous change of cutting speed from 16 to 120m/min. Perpendicular cutting only.

Specifications:

• Cutting angle 0°
• VHZ - frequency converter for continuous change of cutting speed from 16 to 120 m/min.
• The machine arm is made of a special hardened alloy casting
• The machine base consists of a robust welded steel-alloy base
• Belt tensioning by means of a dynamometer with optical indication
• Cleaning brush of the saw blade driven by its own motor and gearbox
• Hydraulic unit for arm movement + pressure regulation
• Hydraulic material clamping (vise). Split vise (clamping before and after the cut).
• Hydraulic feeding vise with self-centering device for uneven bars, etc. Movement of the vise along the chrome ball guide. Feed step 515mm.
• Adjustment of cutting length by means of rotary handle. Movement of the feeding vise by means of trapezoidal screw. Tolerance ± 0,1 mm.
• The saw blade guide is made up of side bearings, carbide inserts as well as top bearings which significantly prolongs the life of the saw blade
• Saw kerf (minimum length of the last piece to be cut) 80mm
• Gearbox fitted with helical gears and long-lasting oil filling
• Material conveyor on infeed side (600mm)
• Ergonomic control panel
• Computer control with 99 programmable programs for different material typesPrograms for different material types and qualities with subsequent determination of cutting parameters and their storage in the computer memory. Piece counting, etc.
• Cooling (before and after cutting)
• 24V electrical control (main switch, STOP button and other controls)
• Protection against overvoltage - degree of protection IP55
• Electric motor 400V/50Hz/3f
• Colours used: yellow RAL 1018 and grey RAL 7037
• Year of manufacture: 2006

Standard accessories (included):

• saw blade
• operating instructions
• VHZ - frequency converter for continuous change of saw blade speed from 16 to 120 m/min
• Material conveyor on the infeed side (600mm)

Technical parameters:

Cutting capacity:

Cutting angle
0°	240 mm	240x240 mm	240x270 mm	-
45°=>>	-	-	-	-
60°=>>	-	-	-	-
<<= 45°	-	-	-	-
<<= 60°	-	-	-	-
